Canbus Slim Digital Hid Ballast

Waterproof 55W Canbus Slim Digital Hid Ballast Hid Lighting Ballast 12V

HID Ballast Product Technical Parameters

1) Appearance: Sliver / Black
2) Product size: 84 * 63 * 16 mm
3) Wattage and Voltage:
12V/35W, 12V/45W, 12V/50W, 12V/55W
24V/35W, 24V/45W, 24V/50W, 24V/55W

1. Start Voltage Range: DC 9V-17V;
2. Input Voltage Range: DC 8V-18V;
3. Stabilized Voltage Range: DC9V-17V;
4. Output Power: 35w±1.5w Constant Power;
5. Efficiency:＞85%(Input voltage DC 13.2V Condition);
6. Working Temperature: -40-105 C;
7. Life Time: ＞2600 hrs;
8. Open-circuit Switching: ＞110,000 times testing in 0.5Hz;
9. Lighting Switching : ＞210,000 times testing in 0.5Hz;
10. Protection Function: Short/out put protection in 1.5 sec by shutdown;
11. Waterproof, Heatproof, Shockproof, Anti-Electronic Interference and Constant Power Output.

HID Ballast Ignition coil built-in-integrated design

1. Output open-circuit protection: It will take protective measures automatically in 1s;
2. Output short circuit protection: It will take protective measures automatically in 1s;
3. Waterproof, Heatproof, Shockproof, Anti-Electronic Interference and Constant Power Output;
4. Resistant to high temperature and other adverse environment functions;
5. Good anti-interference function of electromagnetic radiation;
6. Excellent constant power output designs to accommodate a wider light to extend the life time by 50%;
7. Open switches views: Still work after 100,000 or more;
8. Lighting switches views: After switches of 200,000 times or more, it can work outstanding

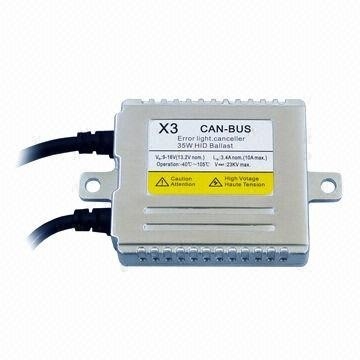

Product Display
