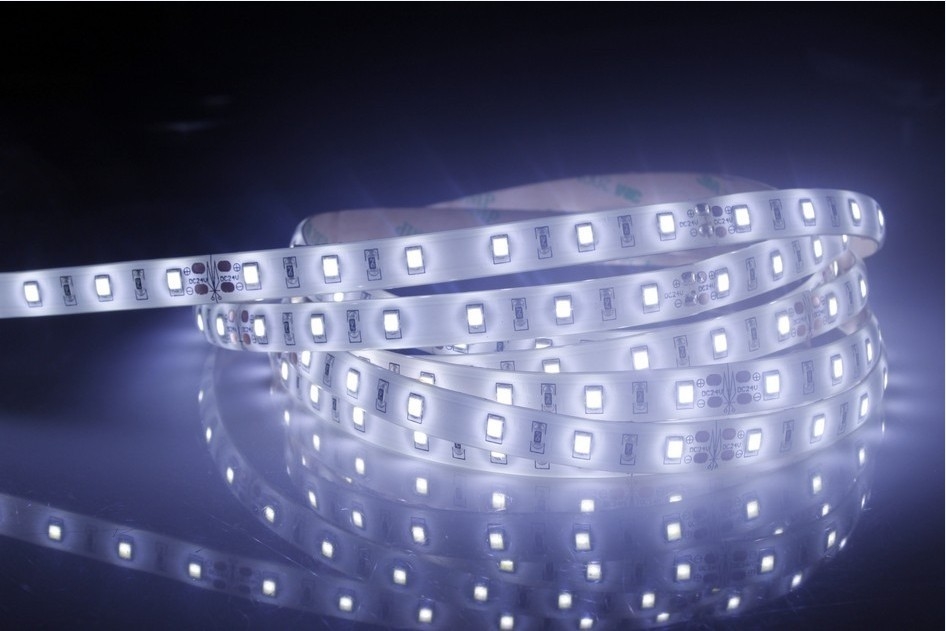

DC12V/24V SMD 5630 Waterproof LED Strip Lighting

DC12V/24V Waterproof LED Ribbon Lighting

Technical Parameters
1. Input Voltage: 12VDC
2. LED Type: SMD3528
3. LEDs Per Meter: 30/60/90/120/240LEDs/M
4. Lumen: 16-18Lm/LED
5: Power Consumption: 4.8W/M
6. PCB Width: 8mm
7.Double PCB
8. CCT Option: 2800-12000K
9.Warranty: 2 Years

Product Features
1. Flexible PCB material easy to bend applys to various shapes' surface installation.
2. High power input voltage design available for 110VAC and 220VAC.
3. Protection class could be formed by IP65, IP67, IP68 over IP20.
4. Long working life-span theoretically reach 50,000hours.
5. Flexible PCB could be coated in white, yellow and black.
6. Widely optional emitting colors White, Red, Green, Blue, Orange, Yellow, Purple, Pink, Ice-blue.
Product Application
1. Walkway lighting
2. Architectural decorative lighting
3. Stairway lighting & decorating
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition.
Our strips could also be widely used for hotel edge decoration, five star hotel lobbies, meeting rooms, advertisement signages, underwater decoration.

Installation Attention
1. Effective power for switch power is only 85% of power's label, so LED product's load power should be at least more than 15% when user choose feeding power.
2. Make sure the right and stable anode and cathode when installing cables, and also attention to the driving voltage in case to damage components and fire accident when circuit pass through voltage.
3. Forbidden to connect cables when power on, putting power in cool place, so that it ensures appropriate working temperature.
4. Make sure strip's grade of waterproof.To install suitable conditions in accordance with practical IP.
5. This product is allowed to connect only 10PCS(0.5M/PCS)in seires wound. 2V differential voltage for the beginning and the end.
6. This user manual is only applicable for our product.
7. If it is Crystal Glue, please don't crook 30 degree, otherwise, it easly happens glue cracking.
