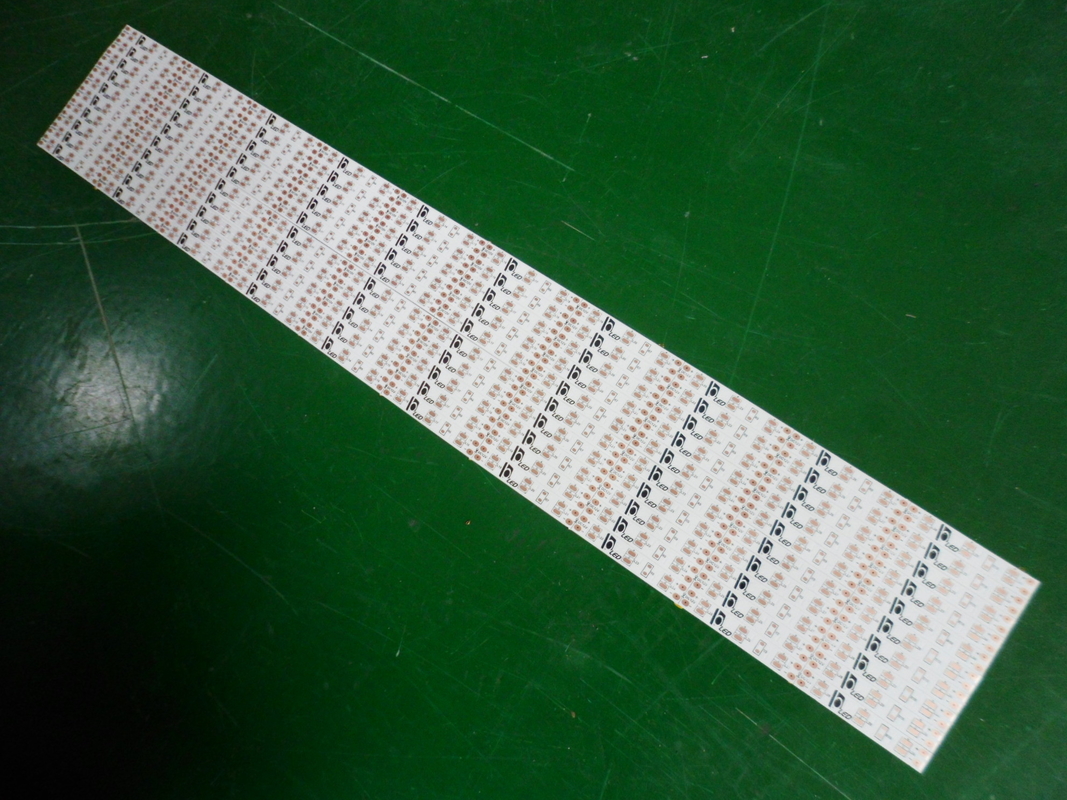

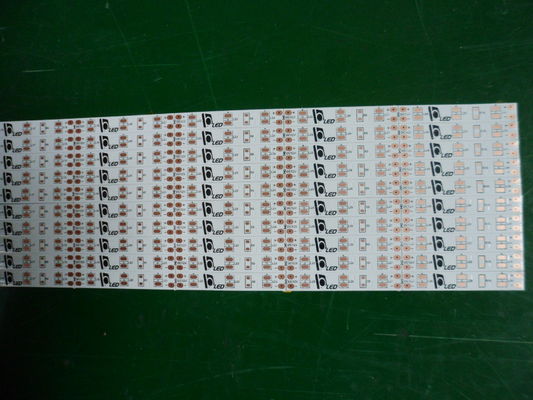

Flexible White LED Strip Light with Polyimide Base Single Layer / Double Layers

Large Image : Flexible White LED Strip Light with Polyimide Base Single Layer / Double Layers Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	JHD PCB
Certification:	UL,RoHs,SGS,ISO9001-2008
Model Number:	JHD-SP-14010

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	US$0.1-US$0.99
Packaging Details:	Vacuum in Carton
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	100000 square meters per month

Contact Now

Detailed Product Description

High Light:

rgb led pcb

led light board

Flexible White LED Strip Light with Polyimide Base Single Layer / Double Layers

Professional PCB Manufacturing

Base Material: Polyimide

Layer: 1 layer/2 layers

Board Thickness: 0.1-0.3mm

Board Dimension: 500x8mm,500x10mm,500x12mm

Copper layer: 15um,18um,25um,35um

Solder Mask: White/Black

Silkscreen: Black

Surface finish: OSP/Gold immersion

Outline Profile: Punching

All of the parameters can be customized!

Features for led strip pcb:
1.Wide applicability, easy to install and maintain
2. Extremely luminous, with wide viewing angle,perfect angle is 120
3. PC base board, unique waterproof technique
4. Energy saving and environmental friendly,No UV or RF interference ,no Mercury or led
5. Operating low voltage DC 12V for human safety
6. Various colors are available
7. Very bright,low power consumption
8. Cuttable every 3 SMD LEDs
9. Long lifespan: More than 50, 000 hours

Testing Procedures For PCB Board:
A) Visual Inspection
B) Flying probe
C) Bed of nails
D) Impedance control
E) Solder-ability detection
F) Digital metallograghic microscope
G) AOI (Automated Optical Inspection)

Safety and Maintenance Information
1.SMD LED ribbon itself and all its components may not be mechanically stressed.
2.Don't damage or destroy conducting paths on the curcuit board while installation.
3.To guarantee safety,only qualified person are allowed to install led strips.
4.Make sure SMD LED ribbons are mounted to correct electrical polarity.
5.Parallel connection is highly recommended for its high safety.
6.Serial connection is not recommended because unbalanced voltage drop may damage SMD LED strips
7.Insufficient and unstable power supply may cause flexible strip damage.
8.Don't install SMD ribbons dicectly on metallic or any other conductive surfaces.

Lead Time

Samples: 3-4 days

Mass Production: 7-18 days(depend on the quantity)

Payment Terms

T/T,Western Union

Packing and Shipment

Vacuum package in carton

Flexible White LED Strip Light with Polyimide Base Single Layer / Double Layers 1

Factory Capability

Item	Manufacturing Capability
Surface Treatment	OSP Immersion Gold Immersion Silver Immersion Tin Lead Free HAL Plating Silver
PCB Layer Type	Single side,Double side
Max. Working Panel Size	1500mm*600mm
Min. Working Panel Size	4mm*4mm
AL Substrate Thickness	0.3mm-4mm
Min. Conductor width	0.15mm
Min. Conductor spacing	0.15mm
Min. Drilling hole size	0.2mm
Plate Thickness Tolerance	±0.1mm
Finished Panel Tolerance	±0.1mm
V-CUT Alignment	±0.1mm
Hole Dia Tolerance	±0.05mm
Hole Position Tolerance	±0.076mm
Finished Copper Thickness	35um-105um(1oz-6oz)
Etching Under Cut	>/=2.0
PTH&Panel Plating Uniformity	>90%
Eing/Flash Gold Thickness	1-5u’’
Solder Mask Thickness	15um-35um
Min. Solder Mask Bridge	0.076mm(3mil)
Silk Screen	White/Black(depend on your requirements)
Thermal Conductivity	1.0~20W/MK
Withstand Voltage	AC 2000V,DC 1500~4000V

JHD PCB Company overview

The production line

Flexible White LED Strip Light with Polyimide Base Single Layer / Double Layers 3

JHD PCB in the professional lighting fair

Flexible White LED Strip Light with Polyimide Base Single Layer / Double Layers 4

Purchase Tips

a. If you want to purchase our PCB, you should provide a formal Gerber files or *.pcb file or something like that.
b. If you want to purchase by large quantity, please ask by SQM.
c. If you want to purchase the PCBA, you should provide the Gerber files, *.pcb file , BOM list etc.
d. If you want to reproduce some exsited PCB board for you, please first provide very clear pictures , then if you are satisfied with our estimate quotation, then send us the real thing, so we can clone it for you.
e. If none of the above can help you, please contact us directly by Skype, QQ or Email. We are very glad to answer the questions you ask, your satisfaction is our final destination.

JHD PCB would like to be your reliable partner in near future!
