Product Details:
Payment & Shipping Terms:
|
High Light: | led t8 tube lights,led tube light fixtures |
---|
1.Auto switch on/off
2.Light sense function: auto identify the environment illuminance,and working after it.
3.energy saving
4 Special circuit design, each LED work separately
Applications:
a)Direct replacement of T8/T10 fluorescent tube.
b) Note: It is used in some fixed places including path ,porch, bathe room, washroom, kitchen, veranda, stair well and park etc.
Specifications:
PRODUCT SPECIFICATIONS |
|||
Product name |

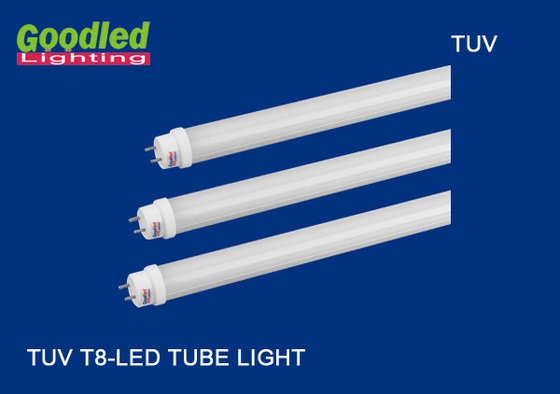

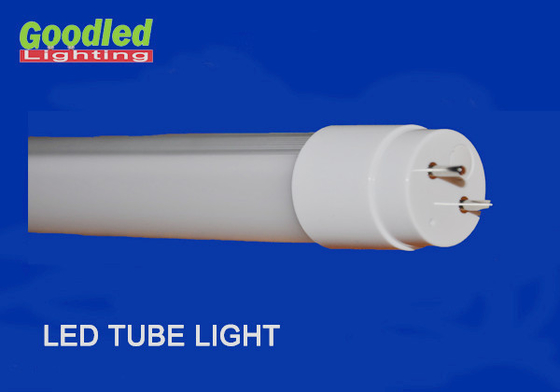

20W 4feet LED TUBE LIGHT |
||
Part NO |

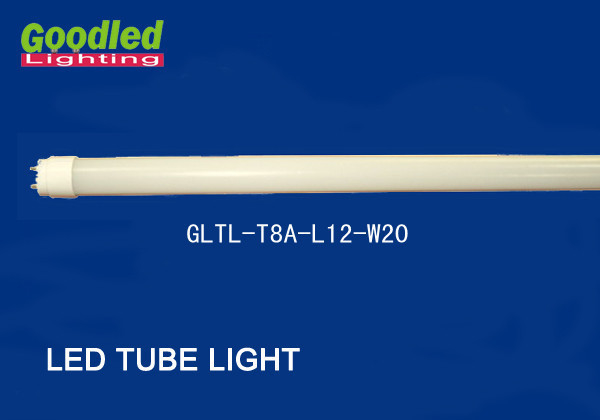

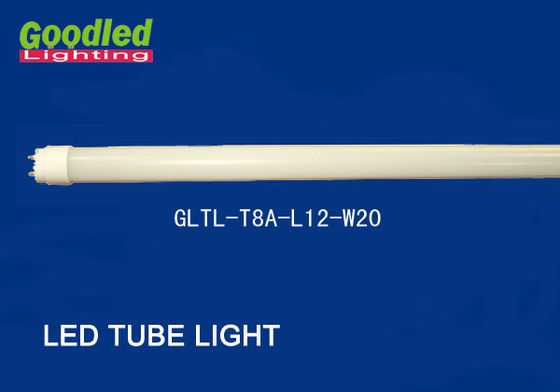

GLTL-T8A-L12-W20W |
GLTL-T8A-L12-W20N |
GLTL-T8A-L12-W20C |
Bulb Type |
T8 |
||
Base Type |
G13 |
||
Dimension |
26X1204 mm |
||
Net Weight |
390g |
||
Technical Characteristic |
|||
Color |
warm white |
natural white |
cool white |
Coior temperature |
2700-3500K |
3700-4500K |
5500-7000K |
CRI |
70-80 |
70-80 |
70-80 |
Lumen |
1720LM |
1920LM |
1920LM |
Illuminance@1m |
270lux |
300lux |
300lux |
Lumen Efficacy |
86 lm/w |
96 lm/w |
96 lm/w |
Input Power |
20W |
||
Viewing Angle |
120 Degree |
||
Dimmable Type |
DALI , TRIAC |
||
Input Voltage |
90-265VAC |
||
Frequency Range |
47~62HZ |
||
PFC |
>90% |
||
Life Span |
40000 Hours |
||
Equivalent |
36W Fluorescent lamp |
||
Waterproof Rating |
IP20 |
||
MATERIALS |
|||
LED Brand |
EPISTAR |
||
LED Type |
3528 SMD LED |
||
LED QTY |
288 Pcs |
||
Housing |
Aluminum |
||
Housing Color |
Sliver |
||
Lens |
PC |
||
OTHERS |
|||
Operating Temperature |
-20℃ TO 45 ℃ |
||
Operating Humidity |
20%-90% RH |
||
Storage Temperature |
-30℃ TO 80 ℃ |
||
Storage Humidity |
10%-95% RH |
||
Application |
Indoor |
||
Enviroment Protection |
RoHS |
||
Safety Certification |
CE FCC |
||
Warranty Time |
2 Years |
||
PACKING |
|||
Size of box |
L1225 X W35 X H35 mm |
||
Gross Weight |
500g |
||
Packing |
1320 x 310x200mm /40pcs/22Kg |
||
20 GP |
240 Carton/9600 pcs /5280Kg |
||
40 GP |
480 Carton/19200pcs /10560Kg |
