Water - proof LED Wallpack With E27 / E40 Base Internal LED Driver
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Voltage: | AC100-300V | Power Range: | 12W-150W |
|---|---|---|---|
| Beam Angle: | 180 Degree & 360 Degree | End Cap: | E26, E27, E39, E40 |
| LED Driver: | Internal | Dimmable: | NO |
| High Light: | led wall pack lights,led corn light bulbs |
||

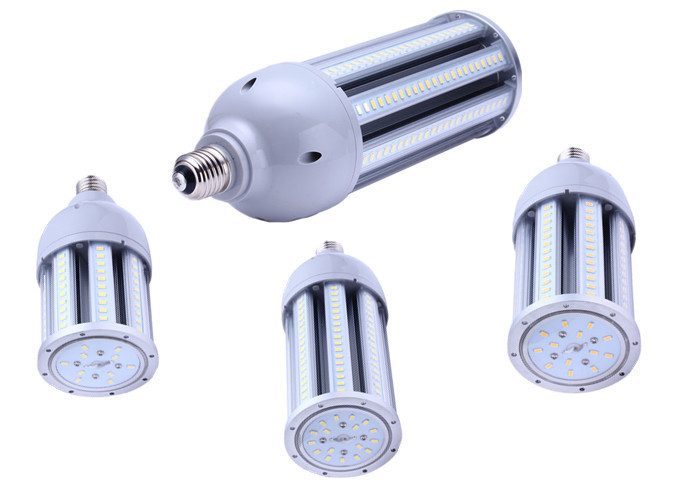

Water - proof LED Wallpack With E27 / E40 Base Internal LED Driver
► Description
E27/E40 IP65 LED Retrofit Corn lamp with the lastest cooling heat sink technology Thermal, which are ideal for use in various of Indoor & Outdoor application including street light, low bays, high bays, warehouse fixture, floodlight, wall pack fixture and so on. They are a perfect LED replacement option for CFL, Sodium, Metal Halide lamps.
► Advantages
- IP65 Waterproof unique structure design.
- Aluminum fin-shape heat sinking and active air exchanging cooling system in order to speed up heat dissipation.
- No UV and near-IR radiation in the light beam.
- Very low energy consumption, Lower thermal output.
- Temperature protection fuction: When the temperature reached 95º start temperature protection function, power supply power to half power, when the temperature down to about 50º power supply full power is restored.
- Not suitable for dimmers, electronic switches and remote controls.
- Mainly used in work places, supermarkets and public lighting.
- Suitable for enclosed/sealed or any IP rated fixtures.
► Specification
|
IP65 Water-proof LED Wall Pack Light |
|||||||
|
Wattage |
27W |
36W |
45W |
54W |
65W |
75W |
|
|
Model Number |
RMS-180D-S/E-1-27W-ID |
RMS-180D-S/E-1-36W-ID |
RMS-180D-S/E-1-45W-ID |
RMS-180D-S/E-1-54W-ID |
RMS-180D-S/E-1-65W-ID |
RMS-180D-S/E-1-75W-ID |
|
|
Input Voltage |
100-300VAC 50-60Hz |
||||||
|
LED Source |
Samsung SMD5630/ Epistar SMD5730 |
||||||
|
Luminous Flux |
2900lm±100lm |
3780lm±100lm |
4725lm±100lm |
5670lm±100lm |
6528lm±100lm |
7875lm±100lm |
|
|
LED Qty |
90pcs |
120pcs |
150pcs |
180pcs |
216pcs |
252pcs |
|
|
CCT |
3000K/4000K/5000K/6000K |
||||||
|
CRI |
>80 |
||||||
|
Power Factor |
>0.9 |
||||||
|
Beam angle |
180° & 360° |
||||||
|
IP Rated |
IP65 |
||||||
|
Lifetime |
50,000 hours |
||||||
|
Working Temperature |
-30℃ ~55℃ |
||||||
|
Dimension |
Φ90*195mm |
Φ90*221mm |
Φ90*247mm |
Φ90*273mm |
Φ90*292mm |
Φ90*292mm |
|
|
Base |
E 27 / E26 (Medium)E 40 / E 39 (mogul)) |
||||||
|
Driver |
Internal UL listed LED Driver |
||||||
|
Warranty |
3~5 Years |
||||||
|
Certification |
UL, CE, LVD, EMC, RoHS, FCC |
||||||
|
Test Report |
IES Files, LM80/LM79 Test Report |
||||||
