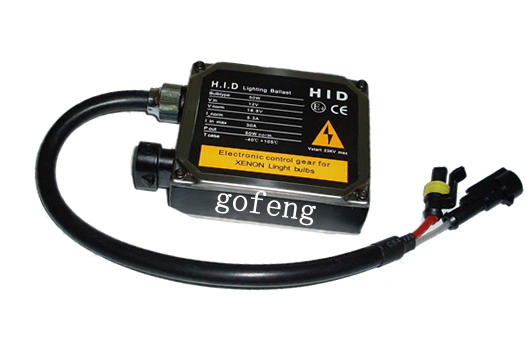

Custom 55W 23KV 12 Volt 24 Volt Over Voltage Protection Low Power Electronic HID Ballasts

large.img.alt
small.img.alt

Large Image :  Custom 55W 23KV 12 Volt 24 Volt Over Voltage Protection Low Power Electronic HID Ballasts Get Best Price

Product Details:
Place of Origin: China
Brand Name: DURT
Certification: CE Rosh
Model Number: T10
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiation
Packaging Details: Inner packing: double blister or antistatic poly bag,Outer packing: carton box
Delivery Time: Often ship item in 5-10 business days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 100000PCS in months
Contact Now
Detailed Product Description
High Light:

electronic hid ballast

,

xenon hid ballast



Custom 55W 23KV 12 Volt 24 Volt Over Voltage Protection Low Power Electronic HID Ballasts
(All Plug and play, 100% original, No cheaper copy here)


Description:
Output power: 55w
Normal working voltage: 12v or 24v

55W ballast Electrical Parameters
Input Voltage Range: 8-18V DC
Operating Voltage: 13.2V DC Typical
Cool Starting Current: < 5.5A (13.2V DC In)
Hot Starting Current: < 4.5A (13.2V DC In)
Input Current: < 4.2A (13.2V DC In)
Output Power: 55W 1W Constant Power
Output Frequency: 380Hz-400Hz
Output Voltage: 70-180V AC True RMS Square Wave
Operating Temperature: -40 degrees Celsius to +105 degrees Celsius
Storage Temperature: --40 degrees Celsius to +105 degrees Celsius
Efficiency: ?88% With Input 13.2V DC
End Of Life Lamp Voltage: > 180V AC RMS Square Wave
High Efficiency, Low Power And High Reliability


IGNITOR
Trigger Output Voltage: > 23KV
Trigger Input Voltage: 380V AC


Protection
1.Output Open/Short Protection:Shutdown In 0.5 Sec
2.Over-voltage, Under-voltage Protection
3. Reversed Input Protection
Water Proof



(All Plug and play, 100% original, No cheaper copy here)
Output power: 55w
Normal working voltage: 12v or 24v

55W ballast Electrical Parameters
Input Voltage Range: 8-18V DC
Operating Voltage: 13.2V DC Typical
Cool Starting Current: < 5.5A (13.2V DC In)
Hot Starting Current: < 4.5A (13.2V DC In)
Input Current: < 4.2A (13.2V DC In)
Output Power: 55W 1W Constant Power
Output Frequency: 380Hz-400Hz
Output Voltage: 70-180V AC True RMS Square Wave
Operating Temperature: -40 degrees Celsius to +105 degrees Celsius
Storage Temperature: --40 degrees Celsius to +105 degrees Celsius
Efficiency: ?88% With Input 13.2V DC
End Of Life Lamp Voltage: > 180V AC RMS Square Wave
High Efficiency, Low Power And High Reliability


IGNITOR
Trigger Output Voltage: > 23KV
Trigger Input Voltage: 380V AC


Protection
1.Output Open/Short Protection:Shutdown In 0.5 Sec
2.Over-voltage, Under-voltage Protection
3. Reversed Input Protection
Water Proof
