High Transparency 350W P16mm LED Glass Display For Stage Background

Large Image : High Transparency 350W P16mm LED Glass Display For Stage Background Get Best Price

Product Details:

Place of Origin:	SHEN ZHEN , CHINA
Brand Name:	minvol
Certification:	CE RoHS
Model Number:	MH-M-RGB-16X16-AC220-350-800X1344

Payment & Shipping Terms:

Minimum Order Quantity:	2 units
Packaging Details:	Carton Box With Wooden Frame or Cover By Wooden Box
Delivery Time:	15-25 days after get the payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500units / month

Contact Now

Detailed Product Description

High Light:

dmx led strip lights

dmx rgb led strip

Transparent and Flexible P16mm LED Glass Display Outdoor DMX LED Lighting for Advertisement Release

Detailed Product Description

Pixel Pitch:	P16mm ( W ) * 16mm ( H )	LED Combination:	1R1G1B
Unit Size:	800mm ( W ) * 1344mm ( H )	Pixel Resolution:	50pixs * 84pixs
LED Qty:	3906pcs / M²	LED Color:	RGB Full Color
Color Changing Qty:	16777216	Protective Level:	IP67
Control Mode:	Online Or Offline	Driving Mode:	Static , Constant Currency
Unit Power:	350W

Transparent and Flexible P16mm LED Glass Display Outdoor DMX LED Lighting for Advertisement Release

Advantage of product

1 . High transparency
2 . High protective level IP67
3 . Easy to install and remove
4 . Can display various videos cartoon text
5 . Best choice for glass building facade lighting and advertisement

Parameters

Code	MH-M-RGB-16X16-AC220-350-800X1344
Unit Size	W800 x H1344mm	Pixel Pitch	W16mm x H16mm
Pixel Combination	1R1G1B	Pixel Density	3906Pix / m²
LED Qty	11718pcs / m²	Unit Resolution	50X84
Control Mode	Online / Offline	Protective Level	IP67
Driving IC	MBI5041	Package IC	Epistar
Driving Mode	Static , constant currency	Power Supply Mode	AC220V / 50HZ
Frame Rate	15~75HZ	Refresh Rate	≥5000HZ
Grey Level	16bits x 16bits x 16bits	Color Changing Qty	16777216
Unit Weight	18kg	Unit Area	1.08m²
Transparent Rate	49%	Unit Power	1172W
Brightness	≥ 17578cd	Brightness Control	0 ~ 100% adjust
Working Hunidity	20% ～ 95% RH	Lifespan	≥ 50000h
Working Temperature	- 20℃ ～ + 70℃	Certificate	CE ROHS

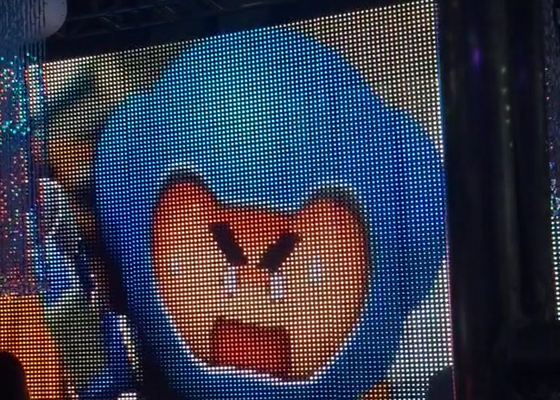

Effect Display

High Transparency 350W P16mm LED Glass Display For Stage Background 0

Transparent and Flexible P16mm LED Glass Display Outdoor IP67 Led Video Displays for Advertisement Release

Shipping
1 . DHL / UPS / TNT / FedEx for samples or small orders , Door-to-Door
2 . By Air or by Sea for batch goods and FCL Airport / Port receiving
3 . By customers' specified freight forwarders or negotiable shipping methods
4 . Delivery Time 3-7 days for samples , 5-25 days for batch goods

Payment Terms
1 . By TT , 30% T / T in advance , the balance paid before the shipping
2 . L / C accepted for large amount
3 . Western Union and Paypal for small amount

Why our screen becomes more and more popular ?

LED display screen has been widely applied in the media field owing to its characteristics of flexible dimension and strong environmental adaptability . Some special places , like glass curtain wall , shop window , stage background , shopping market , hotel , airport , etc., are in need of an LED display that with high transparency and good lighting and perspective effects . Hence , plenty of bar-shaped LED display screens are available on the market .
